ACCESS POINT | TP-LINK | EAP655-WALL | AX3000 | PARA PARED | WIFI 6 | MULTIPLES PUERTO GIGABIT

CARACTERÍSTICAS DE HARDWARE

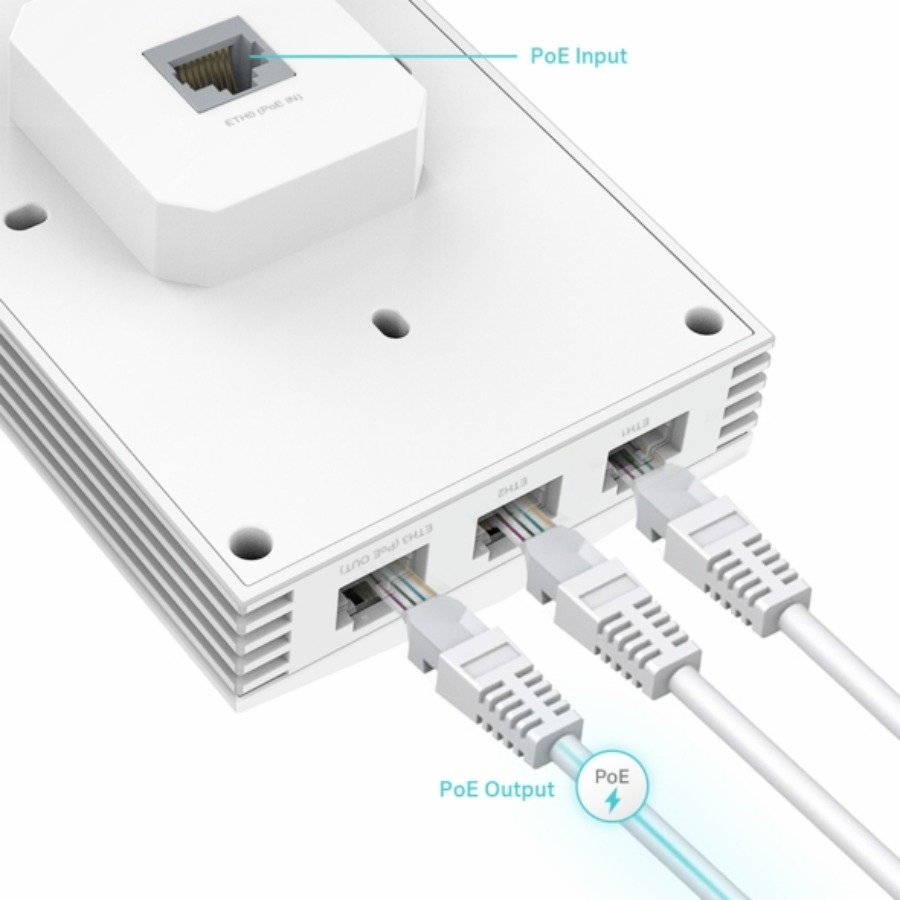

INTERFACE • UPLINK: 1× 10/100/1000 MBPS ETHERNET PORT
• DOWNLINK: 3× 10/100/1000 MBPS ETHERNET PORTS (ONE PORT SUPPORTS POE OUT, AND THE POE OUT FEATURE REQUIRES 802.3AT POE+ INPUT.)
CERRADURA DE SEGURIDAD FÍSICA NO
BOTÓN RESET, LED
FUENTE DE ALIMENTACIÓN 802.3AF/AT POE
CONSUMO DE ENERGÍA • EU: 12W (802.3AT POE, POE OUT OFF)
• US: 12.6W (802.3AT POE, POE OUT OFF)
DIMENSIONES 143 × 86 × 42.6 MM (5.6 × 3.4 × 1.7 IN)
ANTENA 2 DUAL-BAND ANTENNAS
• 2.4 GHZ: 2× 3 DBI
• 5 GHZ: 2× 5 DBI
MONTAJE WALL PLATE MOUNTING (KITS INCLUDED)
CARACTERÍSTICAS INALÁMBRICAS
MAXIMUM NUMBER OF WIRELESS CLIENTS 100+ AND #9651;
ESTÁNDARES INALÁMBRICOS IEEE 802.11AX/AC/N/G/B/A
FRECUENCIA 2.4 GHZ AND 5 GHZ
TASA DE SEÑAL • 5 GHZ: UP TO 2402 MBPS
• 2.4 GHZ: UP TO 574 MBPS
FUNCIONES INALÁMBRICAS • 16 SSIDS (UP TO 8 SSIDS ON EACH BAND)
• ENABLE/DISABLE WIRELESS RADIO
• AUTOMATIC CHANNEL ASSIGNMENT
• TRANSMIT POWER CONTROL (ADJUST TRANSMIT POWER ON DBM)
• QOS(WMM)
• SEAMLESS ROAMING§
• BEAMFORMING
• RATE LIMIT
• LOAD BALANCE
• AIRTIME FAIRNESS
• BAND STEERING
• REBOOT SCHEDULE
• WIRELESS SCHEDULE
• RADIUS ACCOUNTING
• MAC AUTHENTICATION
• WIRELESS STATISTICS
• STATIC IP/DYNAMIC IP
SEGURIDAD INALÁMBRICA • CAPTIVE PORTAL AUTHENTICATION§
• ACCESS CONTROL
• WIRELESS MAC ADDRESS FILTERING
• WIRELESS ISOLATION BETWEEN CLIENTS
• VLAN
• ROGUE AP DETECTION
• 802.1X SUPPORT
• WPA-PERSONAL/ENTERPRISE, WPA2-PERSONAL/ENTERPRISE, WPA3-PERSONAL/ENTERPRISE
POTENCIA DE TRANSMISIÓN • CE:
20 DBM (2.4GHZ, EIRP)
23 DBM (5GHZ BAND1 AND 2, EIRP)
26 DBM (5GHZ BAND3, EIRP)

• FCC:
21 DBM (2.4 GHZ)
21 DBM (5 GHZ)
ADMINISTRACIÓN
OMADA APP YES
CENTRALIZED MANAGEMENT • OMADA HARDWARE CONTROLLER (OC300)
• OMADA HARDWARE CONTROLLER (OC200)
• OMADA SOFTWARE CONTROLLER
• OMADA CLOUD-BASED CONTROLLER
CLOUD ACCESS YES. REQUIRING THE USE OF OC300, OC200, OMADA CLOUD-BASED CONTROLLER, OR OMADA SOFTWARE CONTROLLER.
ALERTAS DE CORREO ELECTRÓNICO YES
LED ON/OFF CONTROL YES
MANAGEMENT MAC ACCESS CONTROL YES
SNMP V1, V2C, V3
SYSTEM LOGGING LOCAL/REMOTE SYSLOG LOCAL/REMOTE SYSLOG
SSH YES
WEB-BASED MANAGEMENT HTTP/HTTPS
L3 MANAGEMENT YES
MULTI-SITE MANAGEMENT YES
MANAGEMENT VLAN YES
ZERO-TOUCH PROVISIONING YES. REQUIRING THE USE OF OMADA CLOUD-BASED CONTROLLER.
OTROS
CERTIFICACION FCC, ROHS
CONTENIDOS DEL PAQUETE • AX3000 WALL PLATE WIFI 6 ACCESS POINT EAP655-WALL
• INSTALLATION GUIDE
• MOUNTING KITS
REQUISITOS DEL SISTEMA MICROSOFT WINDOWS XP, VISTA, WINDOWS 7, WINDOWS 8, WINDOWS10, WINDOWS 11, LINUX
AMBIENTE • OPERATING TEMPERATURE: 0–40 AND #8451; (32–104 AND #8457;)
• STORAGE TEMPERATURE: -40–70 AND #8451; (-40–158 AND #8457;)
• OPERATING HUMIDITY: 10–90% RH NON-CONDENSING
• STORAGE HUMIDITY: 5–90% RH NON-CONDENSING
