CHIPSET:INTEL B760
CPU SUPPORT:SUPPORTS 12TH/13TH GEN INTEL® CORE PROCESSORS, PENTIUM® GOLD AND CELERON® PROCESSORS
LGA1700
MEMORY:4X DDR5, MAXIMUM MEMORY CAPACITY 192GB
MEMORY SUPPORT 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHZ
MAX. OVERCLOCKING FREQUENCY:
1DPC 1R MAX SPEED UP TO 7000+ MHZ
1DPC 2R MAX SPEED UP TO 6600+ MHZ
2DPC 1R MAX SPEED UP TO 6400+ MHZ
2DPC 2R MAX SPEED UP TO 5600+ MHZ
SUPPORTS DUAL-CHANNEL MODE
SUPPORTS NON-ECC, UN-BUFFERED MEMORY
SUPPORTS INTEL® EXTREME MEMORY PROFILE
ONBOARD GRAPHICS 1X HDMI
SUPPORT HDMITM 2.1 WITH HDR, MAXIMUM RESOLUTION OF 4K 60HZ*
1X DISPLAYPORT
SUPPORT DP 1.4, MAXIMUM RESOLUTION OF 8K 60HZ*
AVAILABLE ONLY ON PROCESSORS FEATURING INTEGRATED GRAPHICS. GRAPHICS SPECIFICATIONS MAY VARY DEPENDING ON THE CPU INSTALLED.
EXPANSION SLOT 2X PCI-E X16 SLOT (QTY)
SUPPORTS X16/X4
1X PCI-E X1 SLOT (QTY)
PCI_E1 GEN PCIE 5.0 SUPPORTS UP TO X16 (FROM CPU)
PCI_E2 GEN PCIE 3.0 SUPPORTS UP TO X4 (FROM CHIPSET)
PCI_E3 GEN PCIE 4.0 SUPPORTS UP TO X1 (FROM CHIPSET)
STORAGE 3X M.2 (QTY)
M.2_1 SOURCE (FROM CPU) SUPPORTS UP TO PCIE 4.0 X4 , SUPPORTS 22110/2280/2260/2242 DEVICES
M.2_2 SOURCE (FROM CHIPSET) SUPPORTS UP TO PCIE 4.0 X4 , SUPPORTS 2280/2260/2242 DEVICES
M.2_3 SOURCE (FROM CHIPSET) SUPPORTS UP TO PCIE 4.0 X4 / SATA MODE, SUPPORTS 2280/2260/2242 DEVICES
4X SATA 6G (QTY)
RAID SUPPORTS RAID 0, RAID 1, RAID 5 AND RAID 10 FOR SATA STORAGE DEVICES

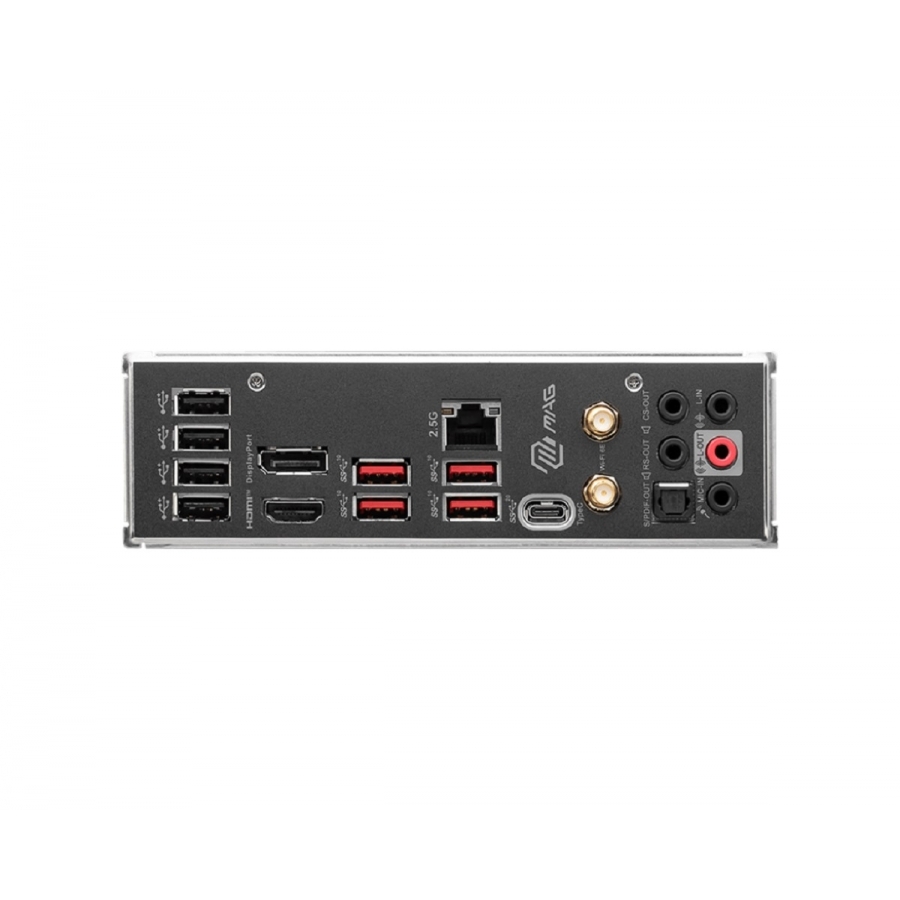

USB 4X USB 2.0 (REAR)
4X USB 2.0 (FRONT)
2X USB 3.2 GEN1 TYPE A (FRONT)
4X USB 3.2 GEN2 TYPE A (REAR)
1X USB 3.2 GEN2 TYPE C (FRONT)
1X USB 3.2 GEN2X2 TYPE C (REAR)
LAN REALTEK® 2.5GBPS LAN
WIRELESS / BLUETOOTH INTEL® WI-FI 6E
THE WIRELESS MODULE IS PRE-INSTALLED IN THE M.2 (KEY-E) SLOT
SUPPORTS MU-MIMO TX/RX, 2.4GHZ / 5GHZ / 6GHZ* (160MHZ) UP TO 2.4GBPS
SUPPORTS 802.11 A/ B/ G/ N/ AC/ AX
SUPPORTS BLUETOOTH® 5.3, FIPS, FISMA
WI-FI 6E 6GHZ MAY DEPEND ON EVERY COUNTRYS REGULATIONS AND WILL BE READY IN WINDOWS 11.
BLUETOOTH 5.3 WILL BE READY IN WINDOWS 10 BUILD 21H1 AND WINDOWS 11.
AUDIO REALTEK® ALC897 CODEC
7.1-CHANNEL USB HIGH PERFORMANCE AUDIO
SUPPORTS S/PDIF OUTPUT
INTERNAL I/O 1X POWER CONNECTOR(ATX_PWR)
2X POWER CONNECTOR(CPU_PWR)
1X CPU FAN
1X PUMP FAN
5X SYSTEM FAN
2X FRONT PANEL (JFP)
1X CHASSIS INTRUSION (JCI)
1X FRONT AUDIO (JAUD)
1X TBT CONNECTOR (JTBT, SUPPORTS RTD3)
1X TUNING CONTROLLER CONNECTOR(JDASH)
2X ADDRESSABLE V2 RGB LED CONNECTOR (JARGB_V2)
2X RGB LED CONNECTOR(JRGB)
1X TPM PIN HEADER(SUPPORT TPM 2.0)
4X USB 2.0 PORTS
2X USB 3.2 GEN1 TYPE A PORTS
1X USB 3.2 GEN2 TYPE C PORTS
LED FEATURE 4X EZ DEBUG LED
CPU SUPPORT:SUPPORTS 12TH/13TH GEN INTEL® CORE PROCESSORS, PENTIUM® GOLD AND CELERON® PROCESSORS
LGA1700
MEMORY:4X DDR5, MAXIMUM MEMORY CAPACITY 192GB
MEMORY SUPPORT 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHZ
MAX. OVERCLOCKING FREQUENCY:
1DPC 1R MAX SPEED UP TO 7000+ MHZ
1DPC 2R MAX SPEED UP TO 6600+ MHZ
2DPC 1R MAX SPEED UP TO 6400+ MHZ
2DPC 2R MAX SPEED UP TO 5600+ MHZ
SUPPORTS DUAL-CHANNEL MODE
SUPPORTS NON-ECC, UN-BUFFERED MEMORY
SUPPORTS INTEL® EXTREME MEMORY PROFILE
ONBOARD GRAPHICS 1X HDMI
SUPPORT HDMITM 2.1 WITH HDR, MAXIMUM RESOLUTION OF 4K 60HZ*
1X DISPLAYPORT
SUPPORT DP 1.4, MAXIMUM RESOLUTION OF 8K 60HZ*
AVAILABLE ONLY ON PROCESSORS FEATURING INTEGRATED GRAPHICS. GRAPHICS SPECIFICATIONS MAY VARY DEPENDING ON THE CPU INSTALLED.
EXPANSION SLOT 2X PCI-E X16 SLOT (QTY)
SUPPORTS X16/X4
1X PCI-E X1 SLOT (QTY)
PCI_E1 GEN PCIE 5.0 SUPPORTS UP TO X16 (FROM CPU)
PCI_E2 GEN PCIE 3.0 SUPPORTS UP TO X4 (FROM CHIPSET)
PCI_E3 GEN PCIE 4.0 SUPPORTS UP TO X1 (FROM CHIPSET)
STORAGE 3X M.2 (QTY)
M.2_1 SOURCE (FROM CPU) SUPPORTS UP TO PCIE 4.0 X4 , SUPPORTS 22110/2280/2260/2242 DEVICES
M.2_2 SOURCE (FROM CHIPSET) SUPPORTS UP TO PCIE 4.0 X4 , SUPPORTS 2280/2260/2242 DEVICES
M.2_3 SOURCE (FROM CHIPSET) SUPPORTS UP TO PCIE 4.0 X4 / SATA MODE, SUPPORTS 2280/2260/2242 DEVICES
4X SATA 6G (QTY)
RAID SUPPORTS RAID 0, RAID 1, RAID 5 AND RAID 10 FOR SATA STORAGE DEVICES
USB 4X USB 2.0 (REAR)
4X USB 2.0 (FRONT)
2X USB 3.2 GEN1 TYPE A (FRONT)
4X USB 3.2 GEN2 TYPE A (REAR)
1X USB 3.2 GEN2 TYPE C (FRONT)
1X USB 3.2 GEN2X2 TYPE C (REAR)
LAN REALTEK® 2.5GBPS LAN
WIRELESS / BLUETOOTH INTEL® WI-FI 6E
THE WIRELESS MODULE IS PRE-INSTALLED IN THE M.2 (KEY-E) SLOT
SUPPORTS MU-MIMO TX/RX, 2.4GHZ / 5GHZ / 6GHZ* (160MHZ) UP TO 2.4GBPS
SUPPORTS 802.11 A/ B/ G/ N/ AC/ AX
SUPPORTS BLUETOOTH® 5.3, FIPS, FISMA
WI-FI 6E 6GHZ MAY DEPEND ON EVERY COUNTRYS REGULATIONS AND WILL BE READY IN WINDOWS 11.
BLUETOOTH 5.3 WILL BE READY IN WINDOWS 10 BUILD 21H1 AND WINDOWS 11.
AUDIO REALTEK® ALC897 CODEC
7.1-CHANNEL USB HIGH PERFORMANCE AUDIO
SUPPORTS S/PDIF OUTPUT
INTERNAL I/O 1X POWER CONNECTOR(ATX_PWR)
2X POWER CONNECTOR(CPU_PWR)
1X CPU FAN
1X PUMP FAN
5X SYSTEM FAN
2X FRONT PANEL (JFP)
1X CHASSIS INTRUSION (JCI)
1X FRONT AUDIO (JAUD)
1X TBT CONNECTOR (JTBT, SUPPORTS RTD3)
1X TUNING CONTROLLER CONNECTOR(JDASH)
2X ADDRESSABLE V2 RGB LED CONNECTOR (JARGB_V2)
2X RGB LED CONNECTOR(JRGB)
1X TPM PIN HEADER(SUPPORT TPM 2.0)
4X USB 2.0 PORTS
2X USB 3.2 GEN1 TYPE A PORTS
1X USB 3.2 GEN2 TYPE C PORTS
LED FEATURE 4X EZ DEBUG LED
