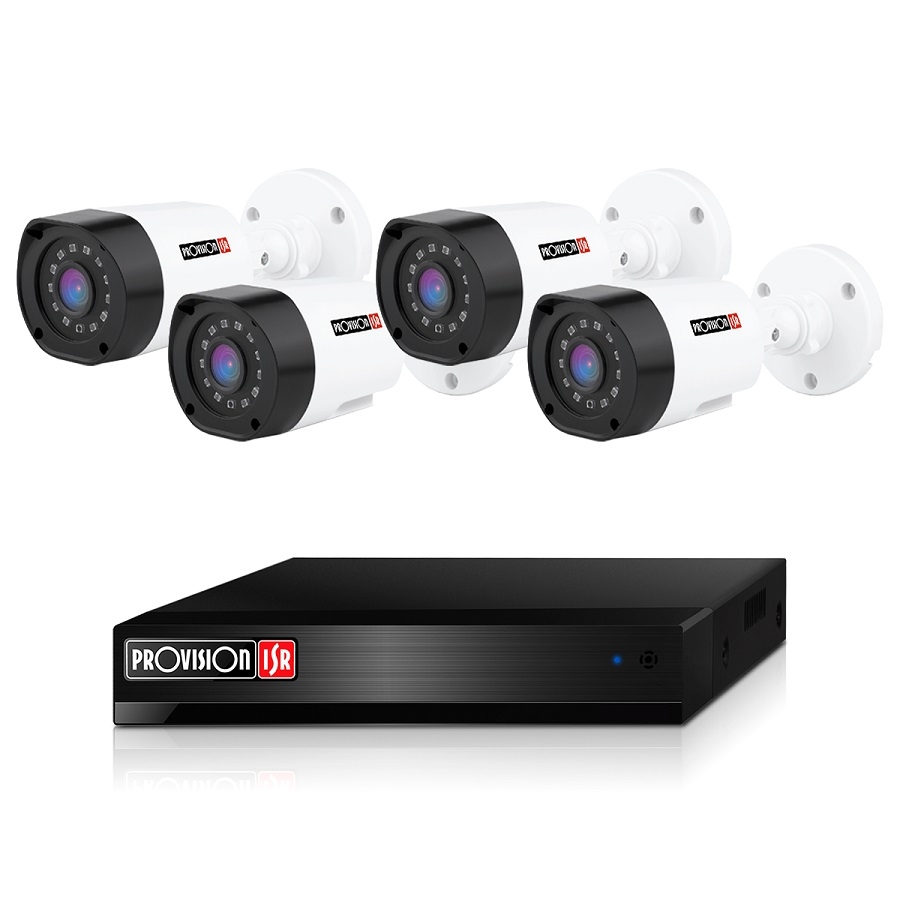

KIT AHD / PROVISION ISR / PAK4LIGHTCC2MP / 4 CAMARAS TIPO BALA 1080P / DVR DE 4 CANALES 1 CANAL IP / ENTRADA DE AUDIO / IP66 / LENTE 3.6MM / IR-15METROS

MODEL I1-390AB36
IMAGE SENSOR 1/3 CMOS
IMAGE FORMAT 16:9
EFFECTIVE PIXELS 1928(H)×1088(V)
SCANNING SYSTEM INTERNAL
RESOLUTION DIGITAL:1920×1080, ANALOG:960H
MIN. ILLUMINATION 0.1LUX / (0LUX IR ON)
DAY AND NIGHT TRUE DAY AND NIGHT (ICR)
IR LED 12 LED (15M)
OSD MENU AVAILABLE VIA COC ONLY
COC SUPPORT YES
DAY AND NIGHT MODE EXTERNAL / DAY / NIGHT
BACKLIGHT COMPENSATION YES
S/N RATIO AND #8805;48DB (AGC OFF)
WHITE BALANCE AUTO / MANUAL
NOISE REDUCE 2D-DNR
VIDEO OUTPUT AHD / CVI / TVI / CVBS + PAL/NTSC (SELECTABLE BY DIP SWITCH)
DEFOG NO
PRIVACY MASK NO
MOTION DETECTION NO
D-EFFECT NO
LENS (FIELD OF VIEW) 3.6MM (69°)
POWER DC12V±10%, ~210MA
OPERATION TEMP. -20°C~+45°C
WATERPROOF IP66
DIMENSION 162.5*70*72M

MODEL SH-4100A5N-2L [OSSIA V1.2]

SYSTEM:
COMPRESSION FORMAT HIGH PROFILE H.264
ONVIF YES (FOR IP CHANNELS)
FORMAT “ALL IN 1” HYBRID (AHD / CVI / TVI / CVBS + IP)

VIDEO:
INPUT MIN. 0CH STANDARD BNC + 5CH IP (OVER NETWORK)
MAX. 4CH STANDARD BNC + 1CH IP (OVER NETWORK) - DEFAULT SETTING
STANDARD OUTPUT HDMI(1920X1080), VGA (1280X1024, 1024X768), CVBS(SPOT)

AUDIO:
INPUT 1CH RCA (2.0 VP-P, 1 K AND #937;)1CH (+IP CAMERAS)
OUTPUT 1CH RCA (2.0 VP-P, 1 K AND #937;)
TWO WAY AUDIO YES
