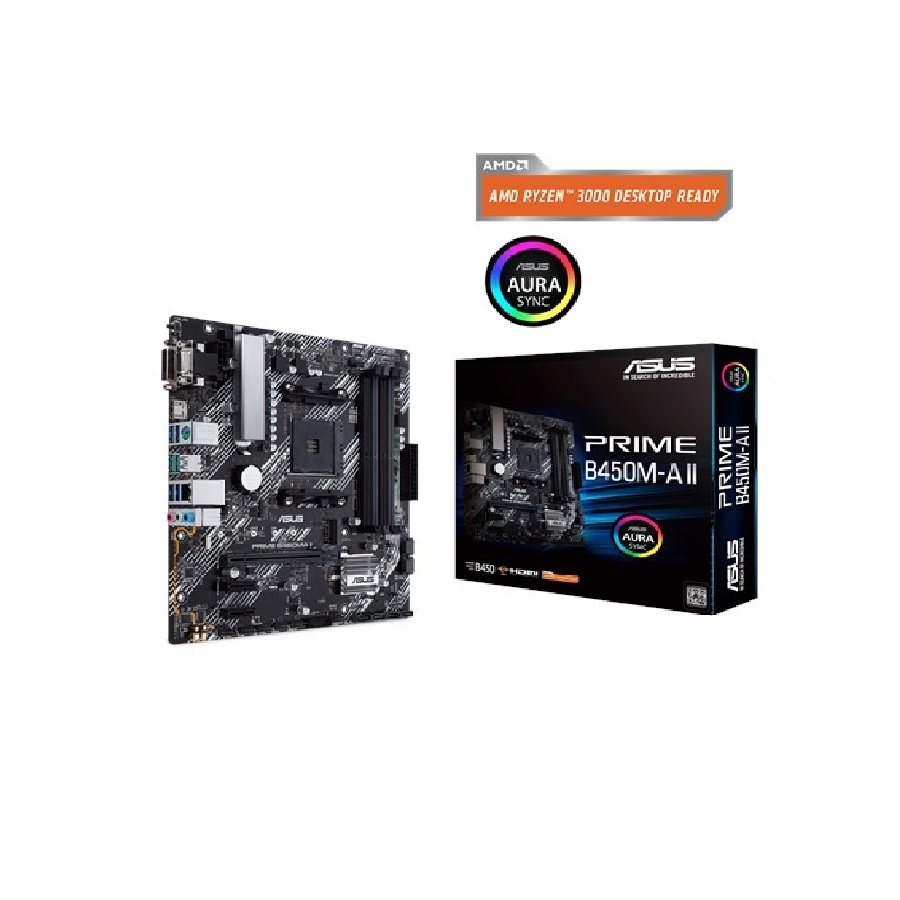

MB ASUS B450 AMD S-AM4 3A GEN/4X DDR4 2666/HDMI/DVI/D-SUB/M.2/6X USB 3.2/MICRO ATX/GAMA MEDIA/RGB

https://www.portalpc.com.mx/web/image/product.template/6171/image_1920?unique=dcfb0de
(0 reseña)

PRIME B450M-A II

1,711.16 1711.16 MXN 1,711.16 Impuestos incluidos
1,817.16

1,305.43 Impuestos incluidos
1,817.16

Lo sentimos, por el momento este producto está agotado.

Esta combinación no existe.


Código Fabricante: PRIME B450M-A II
Disponible en Promocion: 15
Garantía: 3 ANIOS

CPU
AMD AM4 SOCKET FOR AMD RYZEN 5000 SERIES/ 5000 G-SERIES/ 4000 G-SERIES/ 3RD/2ND/1ST GEN AMD RYZEN/ 2ND AND 1ST GEN AMD RYZEN WITH RADEON VEGA GRAPHICS/ ATHLON WITH RADEON VEGA GRAPHICS PROCESSORS
REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST

CHIPSET
AMD B450

MEMORIA
3RD/2ND/1ST GEN AMD RYZEN/ 2ND AND 1ST GEN AMD RYZEN WITH RADEON VEGA GRAPHICS/ ATHLON WITH RADEON VEGA GRAPHICS PROCESSORS
4 X DIMM, MAX. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHZ UN-BUFFERED MEMORY *
DUAL CHANNEL MEMORY ARCHITECTURE
ECC MEMORY (ECC MODE) SUPPORT VARIES BY CPU.
REFER TO WWW.ASUS.COM FOR THE MEMORY QVL (QUALIFIED VENDORS LISTS).
THE MAXIMUM MEMORY FREQUENCY SUPPORTED VARIES BY PROCESSOR.

GRAFICOS
INTEGRATED GRAPHICS IN THE 2ND AND 1ST GEN AMD RYZEN WITH RADEON VEGA GRAPHICS/ ATHLON WITH RADEON™ VEGA GRAPHICS PROCESSORS
1 X D-SUB
1 X DVI-D
1 X HDMI 2.0B
GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES.

SLOTS DE EXPANSION
3RD/2ND/1ST GEN AMD RYZEN PROCESSORS
1 X PCIE 3.0 X16 (X16 MODE)
2ND AND 1ST GEN AMD RYZEN WITH RADEON VEGA GRAPHICS PROCESSORS
1 X PCIE 3.0 X16 (X8 MODE)
AMD ATHLON WITH RADEON VEGA GRAPHICS PROCESSORS
1 X PCIE 3.0 X16 (X4 MODE)
AMD B450 CHIPSET
2 X PCIE 2.0 X1

ALMACENAMIENTO
TOTAL SUPPORTS 1 X M.2 SLOT(S) AND 6 X SATA 6GB/S PORTS
3RD/2ND/1ST GEN AMD RYZEN/ 2ND AND 1ST GEN AMD RYZEN WITH RADEON™ VEGA GRAPHICS 1
1 X M.2 SOCKET 3, WITH M KEY, TYPE 2242/2260/2280/22110 STORAGE DEVICES SUPPORT (SATA AND PCIE 3.0 X 4 MODE)
ATHLON WITH RADEON VEGA GRAPHICS PROCESSORS
1 X M.2 SOCKET 3, WITH M KEY, TYPE 2242/2260/2280/22110 STORAGE DEVICES SUPPORT (SATA MODE)
3RD/2ND/1ST GEN AMD RYZEN™/ 2ND AND 1ST GEN AMD RYZEN WITH RADEON VEGA GRAPHICS/ ATHLON WITH RADEON VEGA GRAPHICS PROCESSORS
2 X SATA 6GB/S PORT(S),
SUPPORT RAID 0, 1, 10
AMD B450 CHIPSET :
4 X SATA 6GB/S PORT(S),
SUPPORT RAID 0, 1, 10

LAN
REALTEK RTL8111H
ASUS LANGUARD

AUDIO
REALTEK ALC887/897 7.1-CHANNEL HIGH DEFINITION AUDIO CODEC
- SUPPORTS : JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING, UP TO 24-BIT/192KHZ PLAYBACK
AUDIO FEATURE :
- LED-ILLUMINATED DESIGN
- AUDIO SHIELDING
- DEDICATED AUDIO PCB LAYERS
- PREMIUM JAPANESE AUDIO CAPACITORS
* CHOOSE THE CHASSIS WITH HD AUDIO MODULE IN FRONT PANEL TO SUPPORT 8-CHANNEL AUDIO OUTPUT.

PUERTOS USB
REAR USB PORT ( TOTAL 6 )
2 X USB 3.2 GEN 2 (UP TO 10GBPS) PORT(S)(2 X TYPE-A)
4 X USB 3.2 GEN 1 PORT(S)(4 X TYPE-A)
FRONT USB PORT ( TOTAL 6 )
2 X USB 3.2 GEN 1 PORT(S)
4 X USB 2.0 PORT(S)

SOFTWARE FEATURES
ASUS EXCLUSIVE SOFTWARE
ARMOURY CRATE
- AURA CREATOR
- AURA SYNC
AI SUITE 3
- PERFORMANCE AND POWER SAVING UTILITY
TURBOV EVO
EPU
DIGI+ VRM
FAN XPERT 2+
PC CLEANER
- EZ UPDATE
- SYSTEM INFORMATION
ASUS CPU-Z
AI CHARGER
ASUS EZ INSTALLER
DAEMON TOOLS
NORTON ANTI-VIRUS SOFTWARE (FREE TRIAL FOR 60 DAYS)
WINRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CRASHFREE BIOS 3
- ASUS EZ FLASH 3
- ASUS UEFI BIOS EZ MODE
ASUS SPECIAL FEATURES
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGUARD
- ASUS OVERVOLTAGE PROTECTION
- ASUS SAFESLOT CORE
- ASUS STAINLESS-STEEL BACK I/O
ASUS Q-DESIGN
- ASUS Q-DIMM
- ASUS Q-SLOT
ASUS THERMAL SOLUTION
- ALUMINUM HEATSINK DESIGN
ASUS EZ DIY
- BIOS FLASHBACK BUTTON
- BIOS FLASHBACK LED
AURA SYNC
- AURA RGB HEADER
ASUS LIGHTING CONTROL

PUERTOS I/O TRASEROS
1 X PS/2 KEYBOARD/MOUSE COMBO PORT(S)
1 X DVI-D
1 X D-SUB
1 X HDMI
1 X LAN (RJ45) PORT(S)
2 X USB 3.2 GEN 2 (TEAL BLUE) (2 X TYPE-A)
4 X USB 3.2 GEN 1 (BLUE) TYPE-A
3 X AUDIO JACK(S)
1 X BIOS FLASHBACK BUTTON(S)

INTERNAL I/O
1 X CPU FAN CONNECTOR(S) (1 X 4 -PIN)
2 X CHASSIS FAN CONNECTOR(S) (2 X 4 -PIN)
1 X USB 3.2 GEN 1(UP TO 5GBPS) CONNECTOR(S) SUPPORT(S) ADDITIONAL 2 USB 3.2 GEN 1 PORT(S) (19-PIN)
2 X USB 2.0 CONNECTOR(S) SUPPORT(S) ADDITIONAL 4 USB 2.0 PORT(S)
1 X M.2 SOCKET 3 WITH M KEY, TYPE 2242/2260/2280/22110 STORAGE DEVICES SUPPORT (SATA AND PCIE 3.0 X 4 MODE)
1 X SPI TPM HEADER
1 X COM PORT(S) CONNECTOR(S)
6 X SATA 6GB/S CONNECTOR(S)
1 X S/PDIF OUT HEADER(S)
1 X 24-PIN EATX POWER CONNECTOR(S)
1 X 8-PIN ATX 12V POWER CONNECTOR(S)
1 X FRONT PANEL AUDIO CONNECTOR(S) (AAFP)
1 X SYSTEM PANEL(S)
1 X CLEAR CMOS JUMPER(S)
1 X COM PORT HEADER
1 X SPEAKER CONNECTOR
1 X RGB HEADER

ACCESSORIOS
USER´S MANUAL
I/O SHIELD
2 X SATA 6GB/S CABLE(S)
1 X M.2 SCREW PACKAGE
1 X SUPPORTING DVD

BIOS
256 MB FLASH ROM, UEFI AMI BIOS

SISTEMA OPERATIVO
WINDOWS 10 64-BIT
WINDOWS 7 64-BIT *2

FACTOR DE FORMA
MATX FORM FACTOR
9.6 INCH X 9.5 INCH ( 24.4 CM X 24 CM )

NOTA
1 THE M.2 SLOT SHARES BANDWIDTH WITH THE SATA6G_5/6 PORTS, AND THEREFORE THE SATA6G_5/6 PORTS CANNOT BE USED WHEN AN M.2 DEVICE IS INSTALLED.
2TO SUPPORT WINDOWS 7 64-BIT, PLEASE INSTALL AN AMD RYZEN 2ND GENERATION OR RYZEN 1ST GENERATION PROCESSOR.
