CPU
AMD SOCKET AM5 FOR AMD RYZEN 7000 SERIES DESKTOP PROCESSORS*
* REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST.
CHIPSET
AMD B650
MEMORY
4 X DIMM, MAX. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC AND NON-ECC, UN-BUFFERED MEMORY*
DUAL CHANNEL MEMORY ARCHITECTURE
SUPPORTS AMD EXTENDED PROFILES FOR OVERCLOCKING (EXPO)
OPTIMEM II
* SUPPORTED MEMORY TYPES, DATA RATE(SPEED), AND NUMBER OF DRAM MODULE VARY DEPENDING ON THE CPU AND MEMORY CONFIGURATION, FOR MORE INFORMATION REFER TO WWW.ASUS.COM FOR MEMORY SUPPORT LIST.
GRAPHICS
1 X DISPLAYPORT*
1 X HDMI® PORT**
* SUPPORTS MAX. 8K@60HZ AS SPECIFIED IN DISPLAYPORT 1.4.
**SUPPORTS 4K@60HZ AS SPECIFIED IN HDMI 2.1.
EXPANSION SLOTS
AMD RYZEN 7000 SERIES DESKTOP PROCESSORS
1 X PCIE 4.0 X16 SLOT
AMD B650 CHIPSET
1 X PCIE 4.0 X16 SLOT (SUPPORTS X4 MODE)*
2 X PCIE 4.0/3.0 X1 SLOTS
* PCIE 4.0 X16 SLOT (SUPPORTS X4 MODE) FROM AMD B650 CHIPSET SHARES BANDWIDTH WITH M.2_3.
STORAGE
TOTAL SUPPORTS 3 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS*
AMD RYZEN 7000 SERIES DESKTOP PROCESSORS
M.2_1 SLOT (KEY M), TYPE 2242/2260/2280(SUPPORTS PCIE 5.0 X4 MODE)
M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)
AMD B650 CHIPSET
M.2_3 SLOT (KEY M), TYPE 2242/2260/2280/22110 (SUPPORTS PCIE 4.0 X4 MODE)**
4 X SATA 6GB/S PORT
*AMD RAID XPERT TECHNOLOGY SUPPORTS BOTH NVME RAID 0/1/10 AND SATA RAID 0/1/10.
** M.2_3 SLOT SHARES BANDWIDTH WITH PCIE 4.0 X16 SLOT (SUPPORTS X4 MODE) WHEN M.2_3 SLOT IS OPERATING IN PCIE MODE, M.2_3 WILL BE DISABLED.
ETHERNET
1 X INTEL® 2.5GB ETHERNET
ASUS LANGUARD
WIRELESS AND BLUETOOTH
WI-FI 6E
2X2 WI-FI 6E (802.11 A/B/G/N/AC/AX)
SUPPORTS 2.4/5GHZ FREQUENCY BAND
BLUETOOTH V5.2
* WI-FI 6E 6GHZ REGULATORY MAY VARY BETWEEN COUNTRIES, AND FUNCTION WILL BE
READY IN WINDOWS 11 OR LATER.
USB
REAR USB (TOTAL 9 PORTS)
1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®)
4 X USB 3.2 GEN 2 PORTS (3 X TYPE-A + 1 X USB TYPE-C®)
4 X USB 2.0 PORTS (4 X TYPE-A)
FRONT USB (TOTAL 7 PORTS)
1 X USB 3.2 GEN 2 CONNECTOR (SUPPORTS USB TYPE-C®)
1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS
2 X USB 2.0 HEADERS SUPPORTS ADDITIONAL 4 USB 2.0 PORTS
AUDIO
ROG SUPREMEFX 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC ALC4080
- IMPEDANCE SENSE FOR FRONT AND REAR HEADPHONE OUTPUTS
- SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING
- HIGH QUALITY 120 DB SNR STEREO PLAYBACK OUTPUT AND 113 DB SNR RECORDING INPUT
- SUPPORTS UP TO 32-BIT/384 KHZ PLAYBACK
AUDIO FEATURES
- SUPREMEFX SHIELDING TECHNOLOGY
- SAVITECH SV3H712 AMP
- REAR OPTICAL S/PDIF OUT PORT
- PREMIUM AUDIO CAPACITORS
- AUDIO COVER

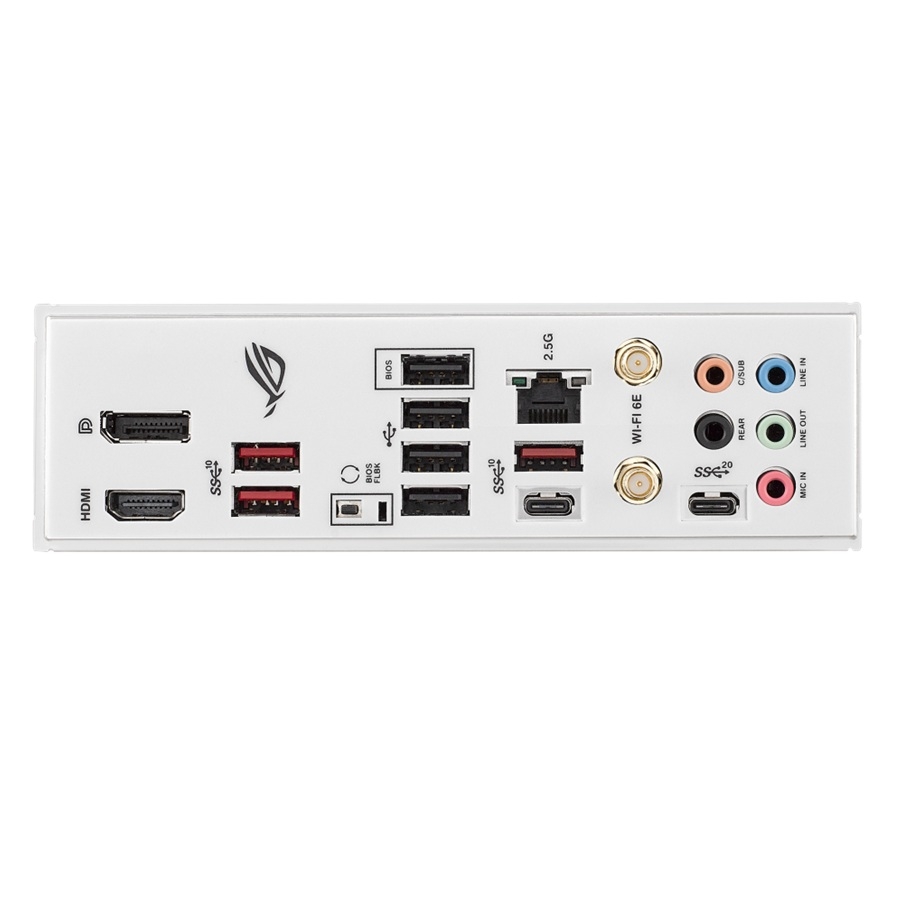

BACK PANEL I/O PORTS
1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®)
4 X USB 3.2 GEN 2 PORTS (3 X TYPE-A + 1 X USB TYPE-C®)
4 X USB 2.0 PORTS (4 X TYPE-A)
1 X DISPLAYPORT
1 X HDMI® PORT
1 X WI-FI MODULE
1 X INTEL® 2.5GB ETHERNET PORT
5 X AUDIO JACKS
1 X BIOS FLASHBACK BUTTON
INTERNAL I/O CONNECTORS
FAN AND COOLING RELATED
1 X 4-PIN CPU FAN HEADER
1 X 4-PIN CPU OPT FAN HEADER
1 X 4-PIN AIO PUMP HEADER
4 X 4-PIN CHASSIS FAN HEADERS
POWER RELATED
1 X 24-PIN MAIN POWER CONNECTOR
1 X 8-PIN +12V POWER CONNECTOR
1 X 4-PIN +12V POWER CONNECTOR
STORAGE RELATED
3 X M.2 SLOTS (KEY M)
4 X SATA 6GB/S PORTS
USB
1 X USB 3.2 GEN 2 CONNECTOR (SUPPORTS USB TYPE-C®)
1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS
2 X USB 2.0 HEADERS SUPPORTS ADDITIONAL 4 USB 2.0 PORTS
MISCELLANEOUS
3 X ADDRESSABLE GEN 2 HEADERS
1 X AURA RGB HEADER
1 X CLEAR CMOS HEADER
1 X CPU OVER VOLTAGE JUMPER
1 X FRONT PANEL AUDIO HEADER (AAFP)
1 X S/PDIF OUT HEADER
1 X 20-3 PIN SYSTEM PANEL HEADER WITH CHASSIS INTRUDE FUNCTION
1 X THERMAL SENSOR HEADER
1 X THUNDERBOLTHEADER
1 X COM_DEBUGHEADER
SPECIAL FEATURES
EXTREME ENGINE DIGI+
- 5K BLACK METALLIC CAPACITORS
ASUS Q-DESIGN
- M.2 Q-LATCH
- PCIE SLOT Q-RELEASE
- Q-LED
- Q-DIMM
- Q-SLOT
ASUS THERMAL SOLUTION
- M.2 HEATSINK
- VRM HEATSINK DESIGN
ASUS EZ DIY
- BIOS FLASHBACK BUTTON
- BIOS FLASHBACK LED
- PROCOOL
- PRE-MOUNTED I/O SHIELD
- SAFESLOT
- SAFEDIMM
AURA SYNC
- AURA RGB HEADER
- ADDRESSABLE GEN 2 HEADERS
SOFTWARE FEATURES
ROG EXCLUSIVE SOFTWARE
- GAMEFIRST VI
- ROG CPU-Z
- SONIC STUDIO III + SONIC STUDIO VIRTUAL MIXER + SONIC SUITE COMPANION
- SONIC RADAR III
- DTS® SOUND UNBOUND
- ANTI-VIRUS SOFTWARE
ASUS EXCLUSIVE SOFTWARE
ARMOURY CRATE
- AIDA64 EXTREME (60 DAYS FREE TRIAL)
- AURA CREATOR
- AURA SYNC
- FAN XPERT 4
- POWER SAVING
- TWO-WAY AI NOISE CANCELLATION
AI SUITE 3
- TPU
- DIGI+ VRM
- TURBO APP
- PC CLEANER
MYASUS
WINRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CRASHFREE BIOS 3
- ASUS EZ FLASH 3
- ASUS UEFI BIOS EZ MODE
FLEXKEY
BIOS
256 MB FLASH ROM, UEFI AMI BIOS
MANAGEABILITY
WOL BY PME, PXE
ACCESSORIES
CABLES
2 X SATA 6GB/S CABLES
ADDITIONAL COOLING KIT
1 X THERMAL PAD FOR M.2
MISCELLANEOUS
1 X ASUS WI-FI MOVING ANTENNAS
1 X CABLE TIES PACK
1 X M.2 Q-LATCH PACKAGE
1 X ROG KEY CHAIN
1 X ROG STRIX STICKERS
1 X ROG STRIX THANK YOU CARD
2 X M.2 RUBBER PACKAGES
DOCUMENTATION
1 X USER GUIDE
OPERATING SYSTEM
WINDOWS® 11 64-BIT
FORM FACTOR
ATX FORM FACTOR
12 INCH X 9.6 INCH ( 30.5 CM X 24.4 CM )
