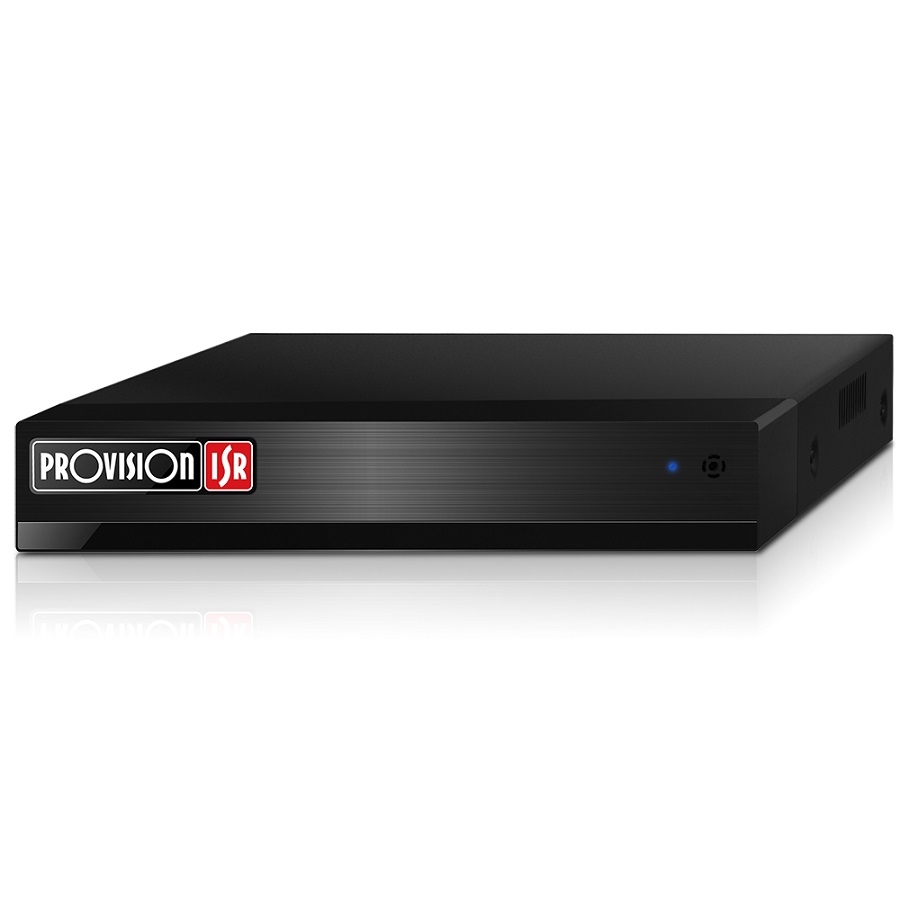

DVR / PROVISION ISR / SH-8100A5N-2LMM / 8 CH / 2 IP / 2MP LITE / ANALITICOS

INFORMACION TECNICA:

SH-8100A5N-2L(MM)



VIDEO:
INPUT: 8CH STANDARD BNC + 4CH IP (OVER NETWORK)

OUTPUT: HDMI(1920X1080), VGA (1280X1024, 1024X768)





RECORDING:
IP: 5MP AND LOWER: 30/25FPS PER CHANNEL

AHD: 2MP LITE / 1MP: UP TO 15/12FPS PER CHANNEL

TVI: 2MP LITE / 1MP: UP TO 15/12FPS PER CHANNEL

CVI: 2MP LITE / 1MP: UP TO 15/12FPS PER CHANNEL

CVBS: 960H: UP TO 30/25FPS PER CHANNEL



PLAYBACK:
8 CHANNEL SIMULTANEOUSLY (LOCAL)

4 CHANNEL SIMULTANEOUSLY (REMOTE)



ANALYTICS:
FOR AHD CAMERAS LINE CROSSING (NO DIRECTION CHOICE), STERILE AREA, SMART SEARCH

FOR IP CAMERAS LINE CROSSING (WITH DIRECTION CHOICE), STERILE AREA, ITEM MONITORING, CAMERA TAMPERING, SMART SEARCH



BANDWIDTH:
INCOMING: 16MBPS

OUTGOING: 60MBPS



AUDIO:
INPUT: 1 CHANNEL (RCA) + IP CAMERA INPUTS

OUTPUT: 1 CHANNEL (RCA) + IP CAMERA OUTPUTS

2 WAY AUDIO



STORAGE:
1 X SATA (UP TO 6TB)



USB PORT:
2 X USB2.0



NETWORK:
RJ-45: 100MBPS



ALARM:
INPUT: IP CAMERAS INPUTS ONLY

OUTPUT: IP CAMERAS OUTPUTS ONLY



PTZ / KEYBOARD:
SUPPORTED PROTOCOLS: PELCO D, PELCO P, SAMSUNG, VISCA, ONVIF, COC
