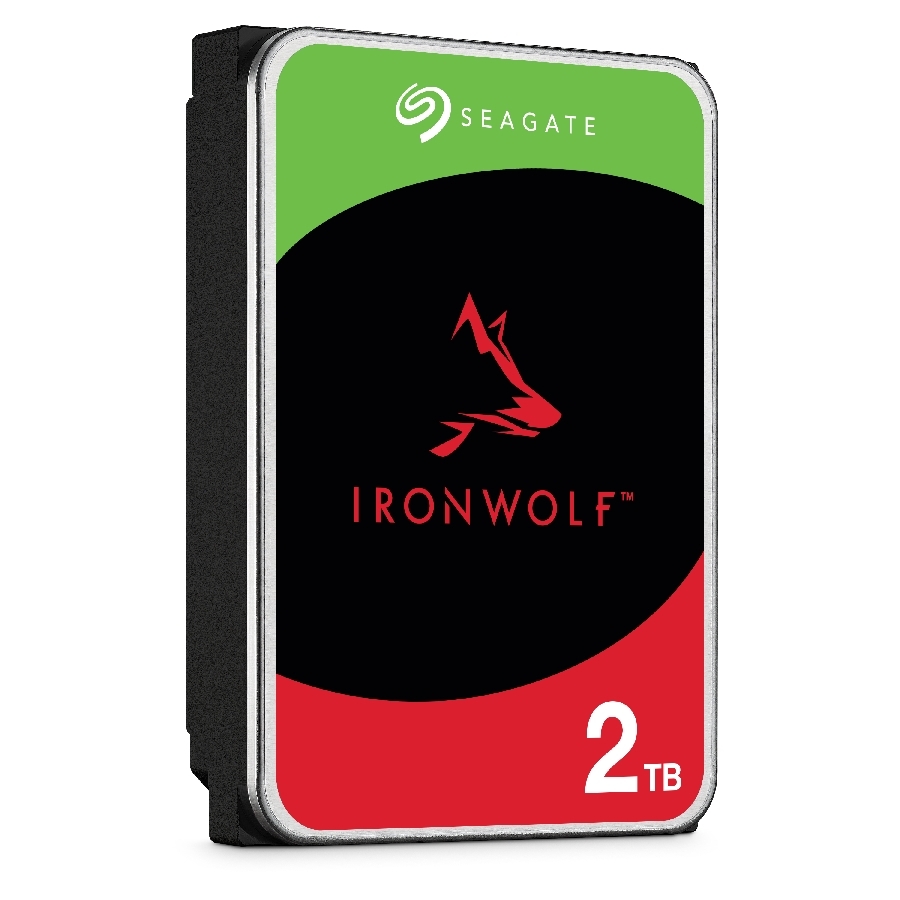

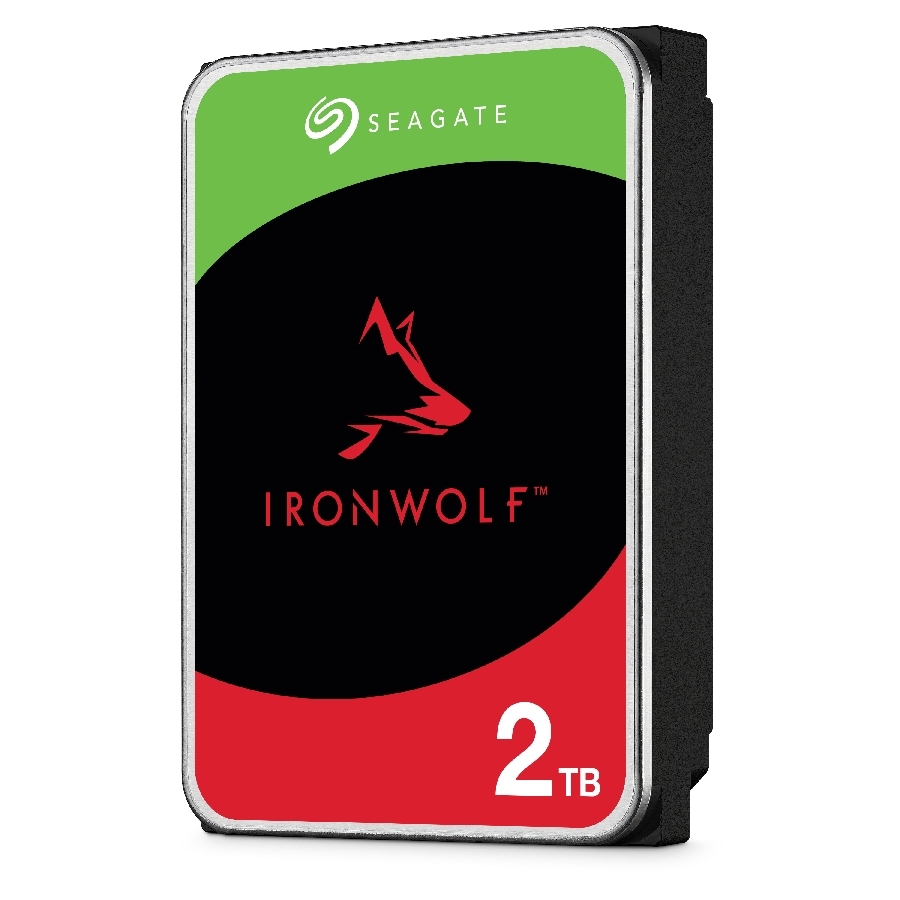

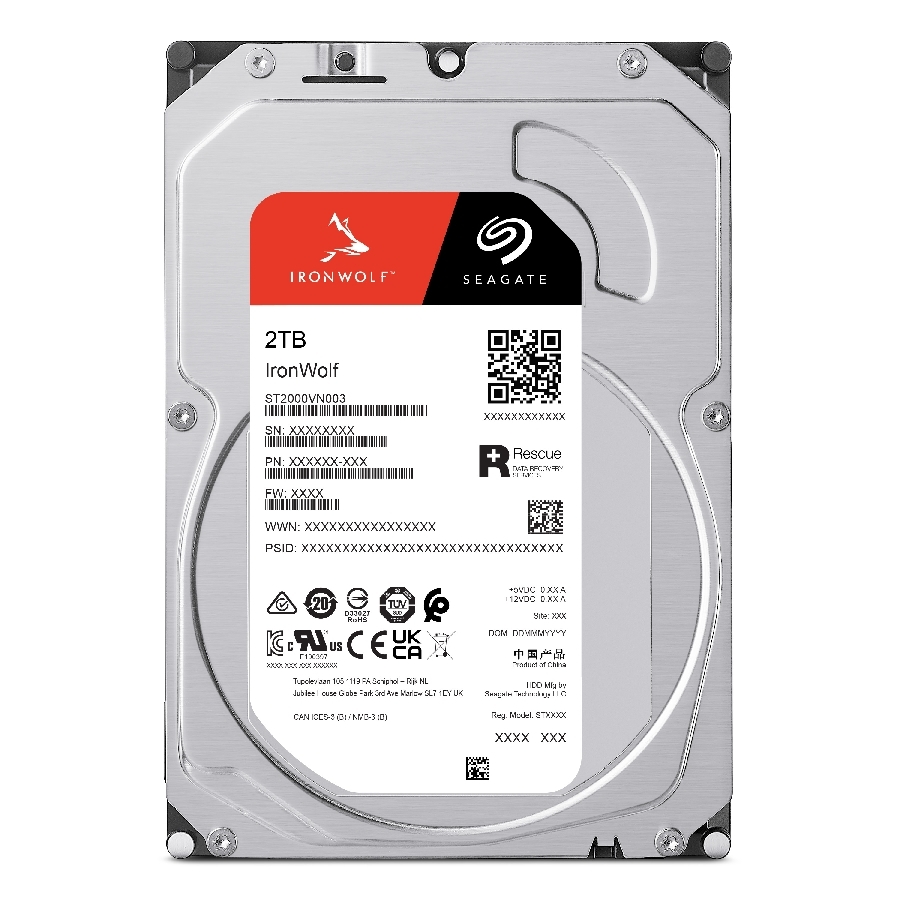

Disco Duro Interno Seagate IronWolf 2TB, 3.5", SATA3, 6Gb/s, 256MB, 5400 RPM

CAPACITY
2TB

STANDARD MODEL NUMBER
ST2000VN003

INTERFACE
SATA 6GB/S

DRIVE BAYS SUPPORTED
1-8 BAYS

RECORDING TECHNOLOGY
CMR

DRIVE DESIGN (AIR OR HELIUM)
AIR

WORKLOAD RATE LIMIT (WRL)
180

ROTATIONAL VIBRATION (RV) SENSOR
YES

DUAL-PLANE BALANCE
YES

ERROR RECOVERY CONTROL
YES

MAX. SUSTAINED TRANSFER RATE OD (MB/S)
180MB/S

SPINDLE SPEED (RPM)
5400

CACHE (MB)
256

LOAD/UNLOAD CYCLES
600,000

NONRECOVERABLE READ ERRORS RATE, MAX
1 PER 10E14

POWER-ON HOURS
8760

MEAN TIME BETWEEN FAILURES (MTBF, HOURS)
1,000,000

RESCUE DATA RECOVERY SERVICES (YEARS)
3

WARRANTY, LIMITED (YEARS)
3

STARTUP CURRENT, TYPICAL (12V, A)
1.8

AVERAGE OPERATING POWER
3.1

IDLE POWER AVERAGE (W)
2.8W

STANDBY MODE/SLEEP MODE, TYPICAL (W)
0.25/0.25

VOLTAGE TOLERANCE, INC. NOISE (5V / 12V)
±5% / ±10%

OPERATING TEMPERATURE (AMBIENT, MIN°C)
0
OPERATING TEMPERATURE (DRIVE REPORTED, MAX °C)
65

NONOPERATING TEMPERATURE (AMBIENT, MIN / MAX °C)
-40 / 70
SHOCK, OPERATING/NONOPERATING: 2MS (MAX)
80GS/300GS

ACOUSTICS, IDLE (TYPICAL, MEASURED IN IDLE 1 STATE) (DBA)
20

ACOUSTICS, SEEK (TYPICAL) (DBA)
21

HEIGHT (MM/IN)
20.20MM/0.795IN

WIDTH (MM/IN, MAX)
101.85MM/4.010IN

DEPTH (MM/IN, MAX)
146.99MM/5.787IN

WEIGHT (G/LB, TYPICAL)
415G/0.915LB
