MB ASUS B550 AMD S-AM4 5A GEN/4X DDR4 2666/DP/HDMI/M.2/6X USB 3.2/USB-C/WIFI/BLUETOOTH/ATX/GAMA MEDIA/GAMER/RGB

https://www.portalpc.com.mx/web/image/product.template/6189/image_1920?unique=25b1db3
(0 reseña)

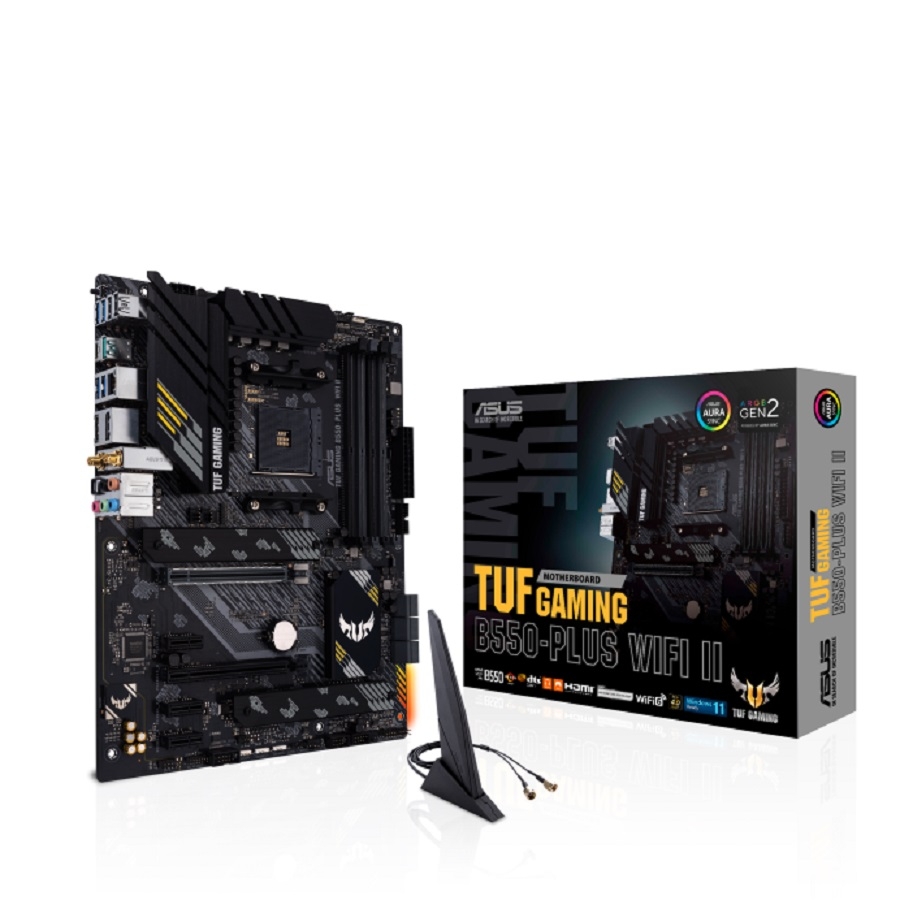

TUF GAMING B550-PLUS WIFI II

3,710.48 3710.48 MXN 3,710.48 Impuestos incluidos
3,821.96

2,745.66 Impuestos incluidos
3,821.96

Lo sentimos, por el momento este producto está agotado.

Esta combinación no existe.


Código Fabricante: TUF GAMING B550-PLUS WIFI II
Disponible en Promocion: 32
Garantía: 3 ANIOS

MODEL
TUF GAMING B550-PLUS WIFI II

CPU
AMD RYZEN5000 SERIES/ 5000 G-SERIES/ 4000 G-SERIES/ 3000 SERIES DESKTOP PROCESSORS
REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST.
REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST
REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST.

CHIPSET
B550

MEMORIA
MEMORY CHANNELS: 4DDR4 DUAL CHANNEL
MAX MEMORY SIZE: 128GB
4 X DIMM, MAX. 128GB, DDR4 4866OC/4800OC/4600OC/4466OC/4400OC/4333OC/4266OC/4200OC/4133OC/4000OC/3866OC/3733OC/3600OC/3466OC/3400OC/3333OC/3200/3000/2933/2800/2666/2400/2133 MHZ, UN-BUFFERED MEMORY
DUAL CHANNEL MEMORY ARCHITECTURE
ECC MEMORY ECC MODE SUPPORT VARIES BY CPU.
REFER TO WWW.ASUS.COM FOR THE MEMORY QVL QUALIFIED VENDORS LISTS, AND MEMORY FREQUENCY SUPPORT DEPENDS ON THE CPU TYPES.
GRAFICOS
1 X HDMI PORT
1 X DISPLAYPORT 1.2
1 X HDMITM 2.14K60HZ
GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES.

RANURAS DE EXPANSION
AMD RYZEN 5000 SERIES/ 3000 SERIES DESKTOP PROCESSORS
1 X PCIE 4.0 X16 SLOT SUPPORTS X16 MODE
AMD RYZEN 5000 G-SERIES/ 4000 G-SERIES DESKTOP PROCESSORS
1 X PCIE 3.0 X16 SLOT SUPPORTS X16 MODE
AMD B550 CHIPSET
1 X PCIE 3.0 X16 SLOT SUPPORTS X4 MODE
3 X PCIE 3.0 X1 SLOT
PCIE 3.0 X16_2 RUNS X1 MODE WHEN ANY OF THE PCIE 3.0 X1 SLOTS IS OCCUPIED.
SUPPORT PCIE BIFURCATION FOR RAID ON CPU FUNCTION.

ALMACENAMIENTO
SUPPORTS 2 X M.2 SLOTS AND 6 X SATA 6GB/S PORTS
AMD RYZEN 5000 SERIES/ 3000 SERIES DESKTOP PROCESSORS :
M.2_1 SLOT KEY M, TYPE 2242/2260/2280/22110 SUPPORTS PCIE 4.0 X4 AND SATA MODES
AMD RYZEN 5000 G-SERIES/ 4000 G-SERIES DESKTOP PROCESSORS
M.2_1 SLOT KEY M, TYPE 2242/2260/2280/22110 SUPPORTS PCIE 3.0 X4 AND SATA MODES
AMD B550 CHIPSET
M.2_2 SLOT KEY M, TYPE 2242/2260/2280/22110 SUPPORTS PCIE 3.0 X4 AND SATA MODES
6 X SATA 6GB/S PORTS
SUPPORT RAID 0, 1, 10
M2_2 SHARES BANDWIDTH WITH SATA6G_56. WHEN M.2_2 IS POPULATED, SATA6G_56 WILL BE DISABLED.

ETHERNET
REALTEK RTL8125B 2.5GB ETHERNET

WIRELESS Y BLUETOOTH
INTEL WI-FI 6 AX200
2X2 WI-FI 6 802.11 A/B/G/N/AC/AX SUPPORT 1024QAM/OFDMA/MU-MIMO
SUPPORTS UP TO 2.4GBPS MAX DATA RATE
SUPPORTS DUAL BAND FREQUENCY 2.4/5 GHZ
SUPPORTS CHANNEL BANDWIDTH: HT20/HT40/HT80/HT160
SUPPORTS PCIE INTERFACE

BLUETOOTH V5.1
BT 5.1 FUNCTION WILL BE READY IN WINDOWS 10 BUILD 19041 OR LATER.
2X2 WI-FI 6 802.11 A/B/G/N/AC/AX
UPPORTS 2.4/5GHZ FREQUENCY BAND

BLUETOOTH V5.2
BLUETOOTH V5.2 FUNCTION WILL BE READY IN WINDOWS 11 OR LATER.

USB
REAR USB:REAR USB PORT TOTAL 8
2 X USB 3.2 GEN 2 PORTS 1 X TYPE-A 1 X USB TYPE-C
4 X USB 3.2 GEN 1 PORTS 4 X TYPE-A
2 X USB 2.0 PORTS 2 X TYPE-A
FRONT USB:FRONT USB PORT TOTAL 6
1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS
2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS

AUDIO
ALC887/897
REALTEK 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC
SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING
SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK

AUDIO FEATURES
- AUDIO SHIELDING
- REAR OPTICAL S/PDIF OUT PORT
- PREMIUM JAPANESE AUDIO CAPACITORS
- DEDICATED AUDIO PCB LAYERS
- AUDIO COVER

PUERTOS E/S TRASEROS
2 X USB 3.2 GEN 2 PORTS 1 X TYPE-A 1 X USB TYPE-C
4 X USB 3.2 GEN 1 PORTS 4 X TYPE-A
2 X USB 2.0 PORTS 2 X TYPE-A
1 X DISPLAYPORT
1 X HDMI PORT
1 X ASUS WI-FI MODULE
1 X REALTEK 2.5GB ETHERNET PORT
5 X AUDIO JACKS
1 X OPTICAL S/PDIF OUT PORT
1 X BIOS FLASHBACK BUTTON

PUERTOS INTERNOS
FAN AND COOLING RELATED
1 X 4-PIN CPU FAN HEADERS
1 X 4-PIN CPU OPT FAN HEADERS
1 X 4-PIN AIO PUMP HEADERS
3 X 4-PIN CHASSIS FAN HEADERS

POWER RELATED
1 X 24-PIN MAIN POWER CONNECTOR
1 X 8-PIN 12V POWER CONNECTOR

STORAGE RELATED
2 X M.2 SLOTS KEY M
6 X SATA 6GB/S PORTS

USB
1 X USB 3.2 GEN 1 HEADERS SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS
2 X USB 2.0 HEADERS SUPPORTS ADDITIONAL 4 USB 2.0 PORTS

MISCELLANEOUS
2 X AURA ADDRESSABLE GEN 2 HEADERS
2 X AURA RGB HEADERS
1 X CLEAR CMOS HEADER
1 X COM PORT HEADER
1 X FRONT PANEL AUDIO HEADER AAFP
1 X SPI TPM HEADER 14-1PIN
1 X 20-3 PIN SYSTEM PANEL HEADER
1 X THERMAL SENSOR HEADER
1 X THUNDERBOLT HEADER
FUNCIONES ESPECIALES DE ASUS

ASUS TUF PROTECTION
- ASUS DIGI VRM DIGITAL POWER DESIGN WITH DR. MOS
- ASUS ENHANCED DRAM OVERCURRENT PROTECTION
- ASUS ESD GUARDS
- TUF LANGUARD
- ASUS OVERVOLTAGE PROTECTION
- ASUS SAFESLOT
- ASUS STAINLESS-STEEL BACK I/O

ASUS Q-DESIGN
- ASUS Q-DIMM
- ASUS Q-LED CPU [RED], DRAM [YELLOW], VGA [WHITE], BOOT DEVICE [YELLOW GREEN]
- ASUS Q-SLOT

ASUS THERMAL SOLUTION
- ALUMINUM M.2 HEATSINK
ASUS EZ DIY
- BIOS FLASHBACK BUTTON
- BIOS FLASHBACK LED
- PROCOOL

AURA SYNC
- AURA RGB HEADERS
- ADDRESSABLE GEN 2 RGB HEADERS
SOFTWARE
ASUS EXCLUSIVE SOFTWARE
ARMOURY CRATE
- AURA SYNC
- TWO-WAY AI NOISE CANCELATION
AI SUITE 3
- PERFORMANCE AND POWER SAVING UTILITY
TURBOV EVO
EPU
DIGI VRM
FAN XPERT 4
PC CLEANER
- EZ UPDATE
- SYSTEM INFORMATION
AURA CREATOR
TUF GAMING CPU-Z
DTS CUSTOM FOR GAMING HEADSETS
NORTON ANTI-VIRUS SOFTWARE FREE TRIAL FOR 60 DAYS
WINRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CRASHFREE BIOS 3
- ASUS EZ FLASH 3
- ASUS UEFI BIOS EZ MODE

BIOS
256 MB FLASH ROM, UEFI AMI BIOS

SISTEMA OPERATIVO
WINDOWS 10 64BIT

FACTOR DE FORMA
ATX
30.5CM X 24.4CM
